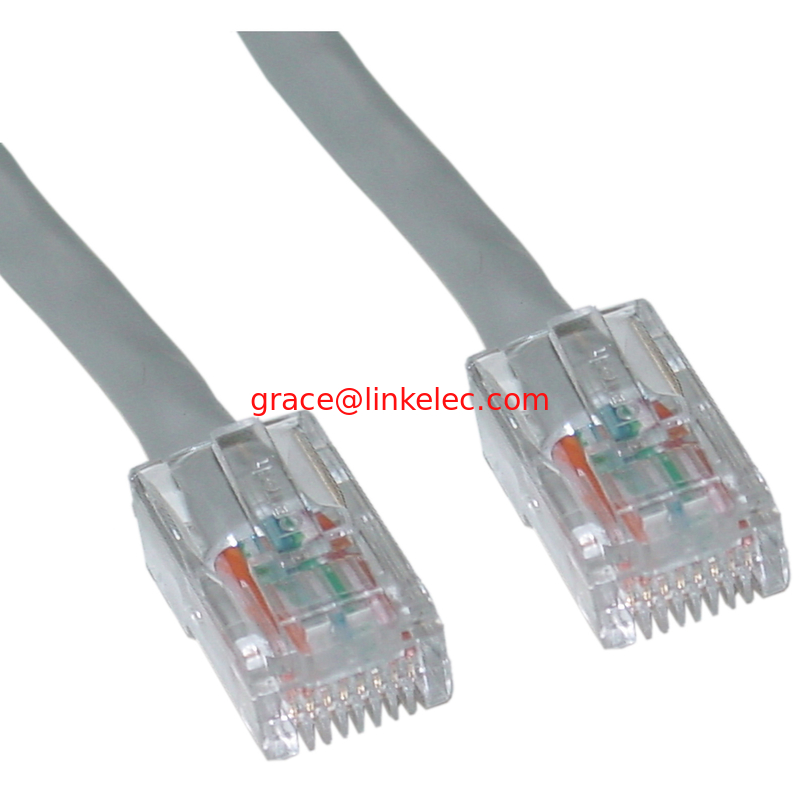

UTP Cat5e Gray Ethernet Patch Cable, Bootless, 6 inch 24AWG
Cat5e RJ45 Ethernet LAN Network Cable
End 1: CAT5E Male Plug
End 2: CAT5E Male Plug
Length: 6 inches
Color: Gray
Wire: 24 AWG
Cat5e Ethernet cables of the 1/2 foot length are typically used in server/network rooms for plugging between patch panels. This is not to say one cannot use them for other purposes such as connecting a Cable or DSL modem to a router/switch in the home or office.
This particular cable is a gray UTP (Unshielded Twisted Pair) bootless patch cable. The connectors are wired to the T568B standard. The individual conductors are 24 AWG (American wire gauge) stranded pure copper. Cat5e patch cables are stranded to improve flexibility. Pure copper conductors provide the best signal possible. The RJ45 plug features gold connectors to prevent corrosion thus ensuring a longer cable life. Our Cat5e Ethernet patch cables exceed the EIA/TIA-568-C standard.
1. Product Structure
| Item | Patch Cord Cable Cat5e |
| Conductor Material | Bare Copper/CCA/CCS |
| Conductor |
Stranded 7*0.2mm/7*0.18mm/ 7*0.12mm(or others) |
| Insulation | HDPE /PE |
| Jacket | PVC/LSZH/ROHS(5.5mm) |
| Plug | UTP/FTP, RJ45( 8P8C,8P6C,8P4C.)RJ11(6P4C,6P2C) |
| Connector |
(Transparent)Platic or Metal, Gold-Plated or Nickle-Plated |
| Plug gold plating | 3-50u |
| Length | As client's request |
| Certification | CE, RoHS,UL,ISO9001 |
| Standards |
ETL 444/CSA-C22.2 No.214, Type CM/TIA/EIA-568A |
| Application |
•100 Base-T4 •100 Base-TX •100VG-AnyLAN •1000 Base-T(Gigabit Ethernet) •155 Mbps ATM •622 Mbps ATM |
| Frequency (MHz) |
Resistance (ohm) |
Return Loss (db) |
Attenuation (db/100m) |
Near-end Crosstalk (db/100m) |
Crosstalk (db/100m) |
| 0.772 | 100±15 | 19.4 | 1.8 | 67 | 66.2 |
| 1 | 20 | 2 | 65.3 | 64 | |
| 4 | 23 | 4.1 | 56.3 | 52 | |
| 8 | 24.5 | 5.8 | 51.8 | 45.9 | |
| 10 | 25 | 6.5 | 50.3 | 44 | |
| 16 | 25 | 8.2 | 47.2 | 39.9 | |
| 20 | 25 | 9.3 | 45.8 | 38 | |
| 25 | 24.3 | 10.4 | 44.3 | 36 | |
| 31.25 | 23.6 | 11.7 | 42.9 | 34.1 | |
| 62.5 | 21.5 | 17 | 38.4 | 28.1 | |
| 100 | 20.1 | 22 | 35.3 | 24 |
3.Features:
1. Fast and reliable connection
2. Twisted pairs with bright color for easy recognition
3. Ripcord and footmark for convenient use
4. Smooth jacket for easy pulling in tight space
5. Color in light grey, blue, black, white, yellow or as your requirement
4.Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
