USB 3.0 to USB 2.0 Internal Cable 4.7"Black USB 3.0 20 Pin to USB 2.0 9 Pin Male to Female

China USB 3.0 to USB 2.0 Internal Cable 4.7"Black USB 3.0 20 Pin to USB 2.0 9 Pin Male to Female supplier

Large Image :  USB 3.0 to USB 2.0 Internal Cable 4.7"Black USB 3.0 20 Pin to USB 2.0 9 Pin Male to Female

Product Details:

Place of Origin: China
Brand Name: Linkelec
Certification: UL,CE,ROHS,FCC
Model Number: GW-USB302301

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Packaging Details: Polybag / blister&card
Delivery Time: 5-7days
Payment Terms: T/T ,West union,paypal
Supply Ability: 50000pcs/week
Contact Now
Detailed Product Description
Outer Diameter: 4.5-5.5 Type: Twisted Pair
Application: Computer Color: Black
Packing: Polybag Connector Color: Gold
Connector Type: USB3.0 20PIN M,USB 9PIN M Shielding: Braid
Gender: Male-Male

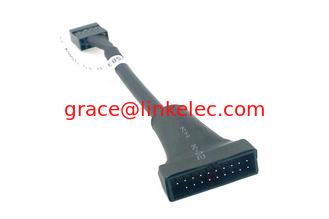

USB 3.0 to USB 2.0 Internal Cable 4.7"
Black USB 3.0 20 Pin to USB 2.0 9 Pin Male to Female


  • Enables your USB 3.0, 20 pin device to connect to a USB 2.0 motherboard
  • Data speed: 480Mbps for USB 3.0 device
  • Length: 12 cm. / 4.7in.
  • Conector A: USB 2.0 Housing 9 pin male
    Conector B: Motherboard USB 3.0 20pin Female
  • 100% Brand new and high quality
  • Compact, convenient and easy to use
  • Let your USB 3.0 20pin device connected the USB 2.0 motherboard.
  • PVC shell,durable, flexible and not easily broken
  • plug-and-play
  • Double-shielded, twisted-pair data wiring minimizes cross talk for error free SuperSpeed data transfer
  • 480Mbps for USB 3.0 device


Feature:

  1. Super Speed 5Gbps Data Transfer Rate
  2. Super Speed USB3.0 Delivers up to 10x USB 2.0's Transmission Rate
  3. backward compatible with USB1.1&2.0
  4. Super speed USB brings significant performance enhancements to ubiquitous USB standard, while remaining compatible with billions of USB enabled devices currently deployed in market
  5. USB 3.0 Cable provide optimized power efficiency
  6. power ability is 900mA. USB Hub Could Connect More Equipment at the Same Time (USB 2.0 is Only 100mA)
  7. Supports 32-bit & 64-bit Windows XP/Server 2003/Vista/Server 2008/Windows 7/Windows 8

Description:
1) USB Cable 2.0&3.0;
2) High speed USB2.0 cable( compliant with USB1.1,USB2.0,USB3.0);
one 28awg twisted pair(data )plus two power conductors;
3) Overall shield: overall aulminized polyester shield with drain wire pus tinned copper braid shield.

USB3.0 vs USB2.0 Feature

Features USB3.0 USB2.0
Data Rate SuperSpeed (5.0Gbps) additional low-Speed (1.5Mbps)
full-Speed (12Mbps)
high-Speed (480Mbps)
Data Signal SS OUT Differential Signal: 1 Pair
SS IN Differential Signal: 1 Pair additional
Differential Signal: 1 Pair
Connector Signals 4 wires: SuperSpeed
2 wires: DP/DM for USB 2.0
3 wires: Vbus/GNDx2
2 wires: DP/DM for USB 2.0
2 wires: Vbus/GND
Bus Protocol No polling Uses polling
Power Control Configuration at multiple link levels Suspend/Resume by Port
Power Supply to Bus Max. 900 mA Max. 500 mA

USB 3.0 vs USB 2.0 Speed

Super Speed USB3.0 Cable with USB A Male to USB B Male

USB 3.0 vs USB 2.0 Specification



Super Speed USB3.0 Cable with USB A Male to USB B Male
