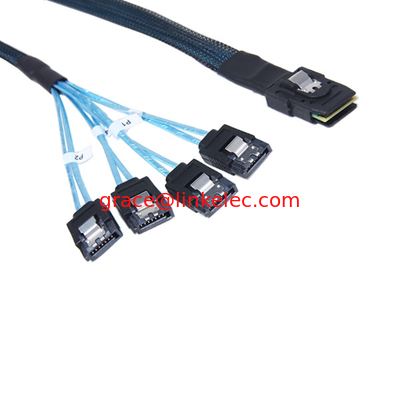

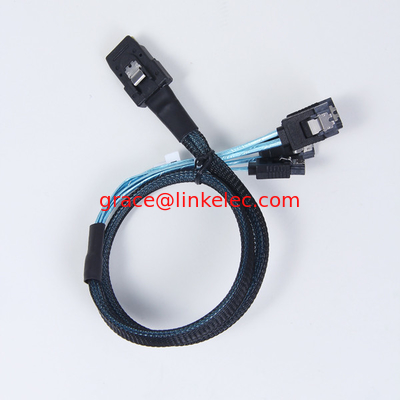

Mini SAS 36p to 4 SATA 7P in blue Internal SATA Cable ,sata with latch
Mini SAS 36pin to 4 sata cable
1. Mini SAS specification
2.Data transfer rate: Mini SAS up to 10Gbps
3. Connector: Mini SAS x1
SATA x4
Interconnection between host (controller, mother board) & device (HDD) SATA II signal cable.
Additional latch in will be provided by metal clips on the SATA connectors.
Material:
1.Housing:PVC,LCP
2.Terminal:Phoshpor Bronze or gold plated
3.Singnal Wire:UL2725 26/28 AWG,Tinned Copper
Electrical:
1. Hi-Pot Test:DC300V
2. Insulation Resistance:10M Ohms(min)
3. Contactor Resistance:1 Ohms(Max)
4. 100% Open Short and Miss Wire Test
Features:
1.Designed to connect SATA port to SATA port
2.Sate data transfer EMI protection
3.Support speed up to 6Gbps/and 3Gbps/1.5Gbps
4.Flexible cable
5.SATA3.0 backwards compatible with earlier products and equipment
SATA cables:
-
SATA 7P
-
SATA 13P
-
SATA 15P
-
Micro SATA 16P(7+7+2)
-
SATA 22P(7+15)
-
MINI SAS 29P(7+7+15)
-
SAS 32P(16+16)
-
ESATA
Applications
Serial SATA technology offers higher bandwidth and a wider range of applications including the flowing :
-
CDs, DVDs
-
Tapes Devices
-
High Capacity Removable Devices
-
Zip Drives
-
CD-RWs
-
HD Device
